DOVETAIL FLAT FAN NOZZLE

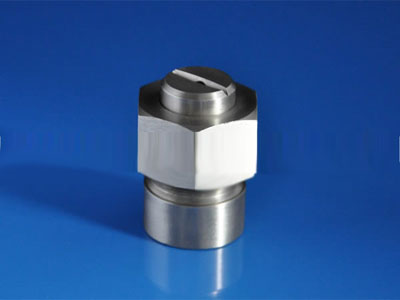

Dovetail Flat Fan Nozzle
The nozzle tips of Dovetail Type are usually mounted onto a pipe by means of a welded nipple and secured in place by a locknut. They can be easily be replaced with the assurance that the linear spray will be in the correct position because the dovetail maintains the correct orientation.
Typical Applications: steel mills where spray position is critical.
Connection: Weld-on nipple
Spray angles: 15 to 120 degree
Material: 304 Stainless Steel, 316L Stainless Steel, Brass
