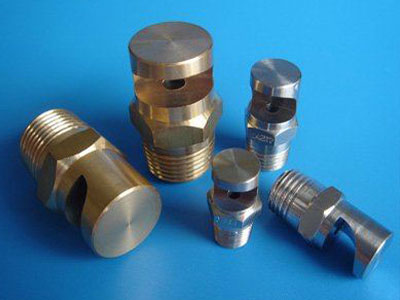

FLOOD JET WIDE ANGLE FLAT FAN SPRAY NOZZLE



Floodjet Wide-angle Spray Nozzle design features

Flood Jet Wide-angle Spray Nozzle will produce secondary wide-angle sector spraying shape and uniform spraying drop. The round spray hole and large flow channel offer you least barrier.

It can also suitable for use with air and steam. All wide angle spray nozzles offer a precision-machined deflector surface whice provides dependable, accurate control of deflection and spray angle.

The wide angle nozzles are precision-machined from solid bar and have a male pipe thread inlet connection.

Features

High resistance to clogging
It is designed to be vaneless with single piece construction, ensuring non-clogging

Technical Specifications

Flow Rate: 1 LPM to 530 LPM
Pressure: 2.0 Kg/cm² or specified
Spray Angle: 60°, 80°, 90°, 120°, and 130°
End Connection: 1/4" to 1" BSP/BSPT/NPT (m/f)
M.O.C.: S.S. 316, 304, Brass, PVC, PVDF, PP, and Teflon
